Caracteristicas:

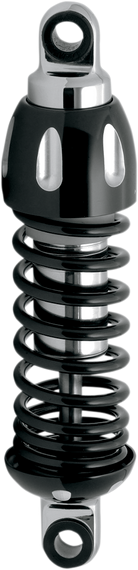

Get the best in class dampening performance with this high-pressure gas mono tube shock

Fade-free in any type of conditions

Features disk valves for quick and consistent damping

Threaded preload adjuster allows for fine tuning with a simple twist of the cap

Can be mounted with the preload adjuster at the top or bottom

A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.

A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.

Some or all shocks have TüV approval

For OEM shock lengths, see the Quick Reference Guide in the back of the catalog.

Heavy Duty Applications recommended for bikes operating at or near maximum load rating over 50% of the time.

Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.

Peso: 9.35
Alto: 3.72
Largo: 17.17
Ancho: 6.97
Aditamentos:

Low Rider Custom FXLR : 1987-1989-1992-1991-1990-1994-1993-1988

883 Deluxe XLH : 1989-1991-1992-1986-1988-1993-1987-1995-1990-1994

883 Hugger XLH : 1994-1997-1995-1998-2000-2002-2003-1996-1999-2001-1987-1990-1988-1991-1989-1992-1993

Sportster 1100 XLH : 1986-1987

1200 Custom XLC : 1998-2000-2001-2003-1997-2002-1996-1999

1200 Sport XLS : 1997-1998-1999-2001-2002-1996-2000-2003

883 Custom XLC : 1999-2001-2003-2000-2002

883 Roadster XLR : 2002-2003

Sportster 1200 XLH : 1988-1989-1990-1991-1992-1997-2002-1993-1994-1995-1998-1996-2001-1999-2000-2003

Sportster 883 XLH : 1990-1991-1992-1997-2002-1988-1989-1996-2000-2003-1993-1998-1986-1987-1994-1995-1999-2001

Super Glide FXR : 1993-1994-1988-1992-1991-1987-1989-1990

Low Rider FXRS : 1991-1987-1989-1988-1993-1990-1992

Low Rider Sport FXRS-SP : 1993-1991-1988-1989-1992-1990

Low Rider Chrome FXRC : 1987

Low Rider Convertible FXRS-CONV : 1990-1993-1991-1992

Sport Glide FXRT : 1991-1993-1988-1992-1990-1987-1989

Roadster 1000 XLS : 1984-1982-1985-1981-1980-1983-1979

Sportster 1000 XLH : 1982-1980-1985-1984-1981-1983-1979

Sportster 1000 XR : 1985-1984-1983

Sportster 750 XR : 1984-1983-1981-1982-1985-1980-1979

1200 Custom EFI XLC : 2003-2002

Café Racer XLCR : 1977-1978-1979

Sportster 1000 XLCH : 1979

Sportster 1000 XLX : 1985-1983-1984

Specs:Extended Length: 11.00"
Reservoir Location: Internal
Units: Pair
Damping Method: Gas Charged
Duty: Heavy Duty
Material: Aluminum
Riding Style: Street
Type: Coilover Monotube
Color/Finish: Black
Product Name: Shock Absorber
Progressive Spring Rate: 1.61 kg/mm - 2.32 kg/mm
Model: 430 Series
Mounting Position: Rear
Progressive Spring Rate: 90.00 lb/in - 130.00 lb/in
Spring Type: Single Progressive Rate
