Caracteristicas:

12 series shocks are gas-charged for superior, fade-free damping and consistent operation

Six-stage, automatic damping - designed with a special anti-topping function

Double-wall shock body construction for piston protection and long life

Standard spring is recommended for bike as sold new, excluding any accessories, rider weight under 200 lb. and passenger use limited to under 50% of the time. Heavy-duty spring is recommended for riders over 200 lb., passenger usage over 50% of the time and/or add-on accessories of considerable weight.

These springs must be ordered when ordering 12-series shocks. However, they can be used as replacements for the 412-series shocks

Peso: 4.25
Alto: 3.65
Largo: 16.88
Ancho: 6.79
Aditamentos:

GS 1100 GK : 1984-1982-1983

Boulevard 1400 S83 : 2007-2009-2005-2006-2008

Intruder 1400 G : 1987-2004-2008-2003-1996-1991-2009-2005-2006-1995-1992-1990-1993-2000-1994-2007-2002-1998-1989-1988-1997-2001-1999

VS Boulevard 1400 GLP : 2007-2005-1998-1991-2003-1992-1995-1987-1999-2002-1988-1994-1989-2006-2009-2008-1990-1993-2000-2001-2004-1996-1997

Intruder 750 G : 1989-1990-1991-1988

Intruder 800 G : 1995-1993-2009-2007-2008-2003-1997-2004-1999-2002-2006-1994-1992-1998-2000-2005-1996-2001

VS Boulevard 800 G : 1994-2007-2006-1998-1992-1995-1996-2008-2005-2003-1997-2004-1993-2002-1999-2000-2001-2009

Intruder 700 G : 1986-1987-1985

Cavalcade LX : 1987-1986-1988-1989

Cavalcade LXE : 1987-1988-1989-1986

Cavalcade GT : 1986-1987-1988-1989

Specs:Duty: Standard
Length: 251,00 mm (9,87")
Length: 9.87"
Progressive Spring Rate: 2,14 kg/mm - 3,04 kg/mm (120 lb/in - 170 lb/in)
Progressive Spring Rate: 2.14 kg/mm - 3.04 kg/mm
Riding Style: Off-Road
Spring Type: Single Progressive Rate
Color/Finish: Chrome

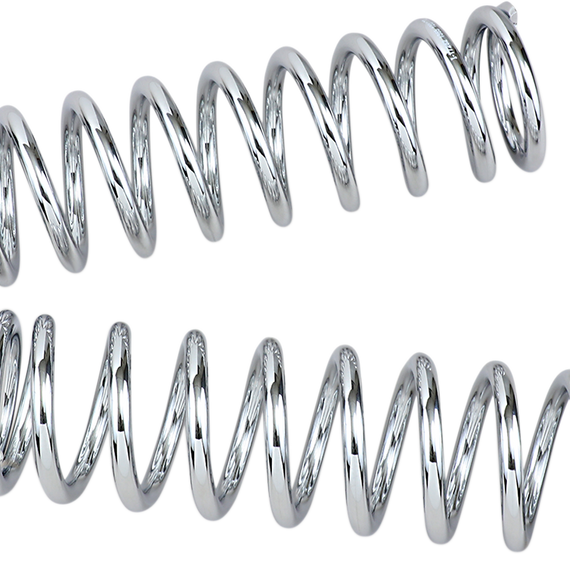

Product Name: Shock Spring
Progressive Spring Rate: 120.00 lb/in - 170.00 lb/in
Riding Style: Street
Type: Fits 12.50", 13.00", 13.50" and 14.25" Shock
Model: 12 Series
Mounting Position: Rear
Length: 251.00 mm
Units: Pair
