Valve Springs - Econo Beehive

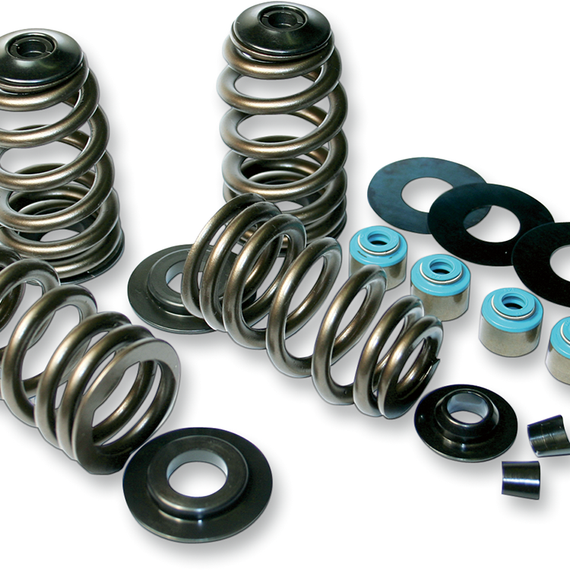

Caracteristicas: Made from premium stress-relieved conical ovate wire Feature extremely high-level of fatigue life Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion Designed to handle the demands of performance engines with 585" and smaller lift camshafts Kits include: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system Seat lbs./installed height; 183 lbs. at 1.770" (0.510" lift), 175 lbs. at 1.795" (0.535" lift), 172 lbs. at 1.813" (0.553" lift), 165 lbs. at 1.835" (0.574" lift), 160 lbs. at 1.845" (0.585" lift), 380 lbs. at 1.260" OPEN HEIGHT coil bind at 1.190" Dyno proven and track tested Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs Made in the U.S.A. Econo BeeHive® kits are direct replacement with no machining or rocker box clearance required for cams up to .574" lift for 84-04 Big Twin and 86-03 XL and up to .585" lift for 05-17 Twin Cam.
Peso: 1.6
Alto: 3.28
Largo: 6.0
Ancho: 4.9
Aditamentos:FXR 2 : 1999 Softail Deuce FXSTD : 2000-2002-2003-2004-2001 Softail Heritage Springer EFI FLSTSI : 2001-2003-2002 Softail Heritage Springer FLSTS : 2001-2002-2003-2000-1997-1998-1999 Softail Heritage Special FLSTN : 1996-1994-1995 1200 Sport XLS : 2003-2000-1996-2001-2002-1999-1998-1997-1998-1999-2001-2002-1997-1996-2000-2003 Sportster 1200 XLH : 2002-1997-1991-1989-1992-1990-2003-1993-1994-1995-1998-2001-1996-1999-2000-1988 1200 Custom XLC : 2002-1999-1996-1997-2003-2000-2001-1998 Sportster 883 XLH : 2001-1999-1986-1995-1987-1994-2003-2000-1989-1996-1988-2002-1997-1992-1990-1991-1998-1993 883 Deluxe XLH : 1989-1990-1994-1993-1988-1986-1995-1987-1992-1991 883 Hugger XLH : 1993-2003-2002-2000-1995-1998-1988-1991-2001-1999-1990-1987-1996-1992-1989-1997-1994 Low Rider EFI FXDL : 2004 Softail Nostalgia FLSTN : 1993 FXR 3 : 1999 FXR 4 : 2000 Sportster 1100 XLH : 1986-1987-1988 Road King Classic EFI FLHRC : 2004-1998-2001-2003-1999-2002-2000 Tour Glide Ultra Classic EFI FLTCU : 1996 Electra Glide Sport FLHS : 1991-1993-1990-1987-1989-1988-1992 Low Rider FXDL : 1999-2004-2001-1997-2003-2000-1995-2002-1994-1993-1998-1996 Road King FLHR : 2002-2001-1995-1994-2003-2004-1998-1999-1996-2000-1997 Super Glide T-Sport FXDXT : 2003-2001-2002 1200 Custom EFI XLC : 2002-2003 883 Custom XLC : 2001-1998-1999-2003-2000-2002 883 Custom EFI XLC : 2002-2003-1999-2001-2000 883 Roadster XLR : 2003-2002 1200 XLCP : 2002-2003 883 Roadster EFI XLR : 2002-2003 Specs:Product Name: Spring Kit
Spring Lift: 0,585"
Spring Lift: 0.585"
Units: Kit
Riding Style: Street
Material: Steel
Stem Diameter: 0.3125"
Application: Exhaust
Model: Econo Beehive
Style: Ovate Wire Beehive
Type: Valve
Peso: 1.6
Alto: 3.28
Largo: 6.0
Ancho: 4.9
Aditamentos:
Spring Lift: 0,585"
Spring Lift: 0.585"
Units: Kit
Riding Style: Street
Material: Steel
Stem Diameter: 0.3125"
Application: Exhaust
Model: Econo Beehive
Style: Ovate Wire Beehive
Type: Valve
