Valve Springs - Econo Beehive - Twin Cam

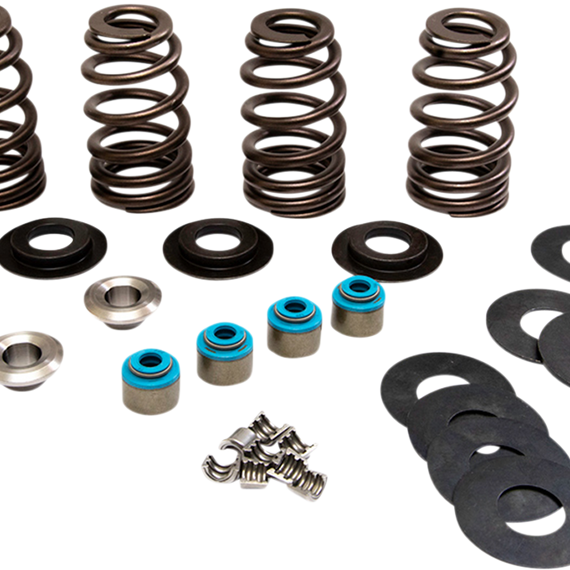

Caracteristicas: Made from premium stress-relieved conical ovate wire Feature extremely high-level of fatigue life Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion Designed to handle the demands of performance engines with 585" and smaller lift camshafts Kits include: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system Seat lbs./installed height; 183 lbs. at 1.770" (0.510" lift), 175 lbs. at 1.795" (0.535" lift), 172 lbs. at 1.813" (0.553" lift), 165 lbs. at 1.835" (0.574" lift), 160 lbs. at 1.845" (0.585" lift), 380 lbs. at 1.260" OPEN HEIGHT coil bind at 1.190" Dyno proven and track tested Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs Made in the U.S.A. Econo BeeHive® kits are direct replacement with no machining or rocker box clearance required for cams up to .574" lift for 84-04 Big Twin and 86-03 XL and up to .585" lift for 05-17 Twin Cam.
Peso: 1.3
Alto: 3.5
Largo: 6.25
Ancho: 5.25
Aditamentos:Iron 1200 XLNS : 2018-2019-2020 1200 Custom EFI XLC : 2019-2018-2008-2011-2004-2005-2006-2007-2013-2015-2017-2009-2010-2012-2014-2016 883 SuperLow XLL : 2019-2018-2014-2016-2011-2012-2015-2017-2013 Iron 883 XLN : 2018-2020-2019-2010-2017-2009-2013-2015-2016-2011-2012-2014 Sportster Forty-Eight Special XLXS : 2018-2019 Sportster Forty-Eight XLX : 2018-2020-2019-2016-2010-2011-2012-2015-2017-2013-2014 1200 Roadster XLCX : 2018-2020-2019-2016-2017 SuperLow 1200 XLT : 2016-2015-2014-2017 Sportster Seventy-Two XLV : 2014-2012-2016-2013-2015 1200 Custom XLC : 2004-2005-2006 1200 Low EFI XLL : 2007-2009-2011-2008-2006-2010 883 Custom XLC : 2006-2004-2005 883 Low XLL : 2005-2006 883 Low EFI XLL : 2007-2006-2008-2010-2009 883 EFI XL : 2008-2009-2007 883 Custom EFI XLC : 2006-2007-2009-2004-2005-2008 883 Roadster XLR : 2006-2007-2005 883 XL : 2006-2004-2005 Sportster 1200 XR : 2009-2012-2010-2011 Sportster 1200 X XR : 2010-2011-2012-2009 1200 XLCP : 2013-2015-2012-2014-2016-2011-2017 1200 Roadster XLR : 2005-2004-2006 1200 Roadster EFI XLR : 2008-2006-2007 883 Roadster EFI XLR : 2006-2007-2005 1200 Nightster XLN : 2009-2010-2011-2012-2007-2008 Sportster 1200 XL 50 : 2007 1200 Low XLL : 2006 Specs:Stem Diameter: 0.3125"
Type: Valve
Model: Econo Beehive
Product Name: Spring Kit
Stem Diameter: 0,3125"
Material: Titanium
Riding Style: Street
Style: Ovate Wire Beehive
Material: Steel
Units: Kit
Peso: 1.3
Alto: 3.5
Largo: 6.25
Ancho: 5.25
Aditamentos:
Type: Valve
Model: Econo Beehive
Product Name: Spring Kit
Stem Diameter: 0,3125"
Material: Titanium
Riding Style: Street
Style: Ovate Wire Beehive
Material: Steel
Units: Kit
