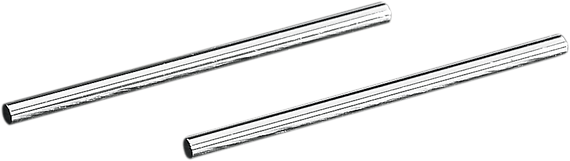

Andrews .105" Gage Pins
Caracteristicas: Used to measure the outside diameter of cam drive gears Made in the U.S.A. There are two basic differences between 90-99 cam gear sizes and earlier years. The overall range of gear pin measurements (from the largest gears to the smallest) was reduced in '90 from .006" to .003". The large gears are the same size for both 84-89 and 90-99 (green and black color codes). Gear size measurements (over pins) are listed in the 1990 H-D manual using .108" pins instead of .105" pins (as for earlier years). For the same gear, measurement over .108" pins will be approximately .012" larger than for .105" pins. For 92 engines, stock cam gears are interchangeable with earlier versions but gear outer diameters have been reduced by .025".
Peso: 0.38
Alto: 0.15
Largo: 3.26
Ancho: 1.29
Aditamentos:Sport Glide FXRT : 1989-1988-1987-1986-1984-1985-1983 Electra Glide Classic FLHTC : 1985-1984-1986-1991-1989-1987-1983-1988 Electra Glide Sport FLHS : 1989-1988-1980-1987-1981-1982 Low Rider FXRS : 1989-1986-1987-1988 Tour Glide FLT : 1982-1980-1983-1981 Super Glide II FXRS : 1982-1983 Tour Glide Classic FLTC : 1986-1982-1988-1985-1984-1981-1987-1989-1983-1980 Electra Glide FL : 1979-1980-1975-1969-1967-1974-1972-1965-1973-1976-1977-1978-1966-1970-1968-1971 Low Glide Custom FXRC : 1985 Low Rider Custom FXLR : 1989-1987-1988 Low Rider Sport FXRS-SP : 1988-1989 Electra Glide Ultra Classic FLHTCU : 1989 1200 Electra Glide FLH : 1977-1979-1980-1978-1966-1967-1969-1968-1974-1975-1965-1970-1972-1973-1971-1976 Hydra Glide FL : 1956-1955-1957-1954 Hydra Glide EL : 1956-1954-1955-1957 Duo Glide FL : 1962-1964-1961-1958-1960-1963-1959 Low Glide FXRS : 1985-1984 Softail Standard FXST : 1989-1984-1987-1985-1988-1986 Duo Glide FLH : 1963-1958-1961-1959-1962-1960-1964 Softail Heritage FLST : 1989-1987-1988-1986 1200 Super Glide FX : 1974-1975-1978-1971-1977-1972-1973-1976 Electra Glide FLH : 1979-1978-1981-1982-1984-1980-1983 Electra Glide Heritage FLH : 1981 1200 Low Rider FXS : 1979-1978-1977 Wide Glide FXWG : 1980-1984-1981-1982-1983 Super Glide 80 FXE : 1980-1979-1981-1982-1984-1983 Super Glide II FXR : 1983-1982 Super Glide FXR : 1988-1989-1986-1987 Softail Custom FXSTC : 1987-1986-1989-1988 Softail Springer FXSTS : 1989-1988 Softail Heritage Classic FLSTC : 1988-1987-1989 Low Rider FXSB : 1985-1983-1984 Low Rider FXS : 1982-1981-1979-1980 Fat Bob FXEF : 1980-1979-1981-1985 Sturgis FXB : 1980-1982-1981 1200 Super Glide FXE : 1980-1977-1974-1976-1975-1979-1978 Low Rider Chrome FXRC : 1987 Tour Glide Ultra Classic FLTCU : 1989 Electra Glide Special FLHX : 1984 Disc Glide FXDG : 1983 Electra Glide Classic FLH : 1982-1981 Sport Glide Grand Touring FXRD : 1986 1200 Fat Bob FXEF : 1979-1980 Disc Glide FXRDG : 1984 Electra Glide Standard FLHT : 1983-1987-1985-1986 Specs:Color/Finish: Silver
Measurement System: SAE
Type: Gauge
Material: Alloy Steel
Outside Diameter: 0.105"
Product Name: Pin
Riding Style: Street
Units: Pair
Application: Camshaft
Peso: 0.38
Alto: 0.15
Largo: 3.26
Ancho: 1.29
Aditamentos:
Measurement System: SAE
Type: Gauge
Material: Alloy Steel
Outside Diameter: 0.105"
Product Name: Pin
Riding Style: Street
Units: Pair
Application: Camshaft
